CDI Power Unit for 1 Coil

Login to view prices

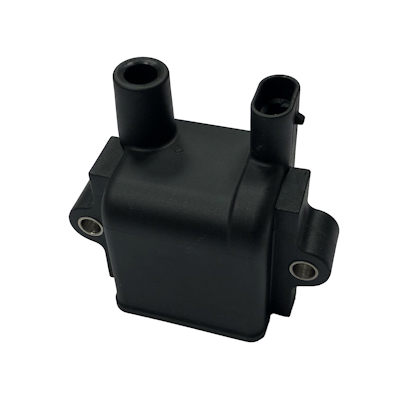

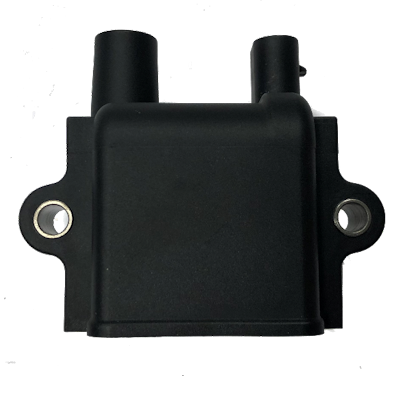

1 Coils CDI Power Module

Description

This STAND ALONE unit is a Capacitiver Discharge Ignition power module . It’s designed for system equipped with 1 coil and distributor in multi cylinders engines. Can be used  to replace the BOSCH units in the historycal cars. ( eg. old Porsche, Ferrari, Lamborghini )

  • Output Voltage 480……550V
  • Spark Energy   115……150mJ
  • Supply current    up to 7A
  • Suppy Voltage   6…….18V
  • Nominal Voltage 12.5V
  • Trigger signal    250mV……200V AC
  • Trigger point     Zero crossing on Negative edge
  • Operating Temperature up to 105°C
  • Wheight 560 gr

Additional information

Weight 1.5 kg

DATASHEET

Here the datasheet :
