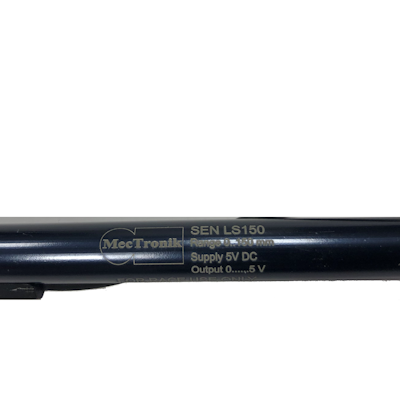

Linear Position Sensor – Body diam. 9mm

Login to view prices

Description

Miniature Linear Positon Sensors are designed to withstand the harsh environments within motorsport and automotive testing applications. By using a proven conductive plastic, track technology and multi-fingered contacts, the SEN_LSxx offers high performance and reliability under extreme temperature and vibration. Available in different length range. The standard version is supplied with the free wires, while the Junior GP M2 version is supplied with JST 3 way connector for a Plug&Play connection.

  • 9.4 mm Diameter

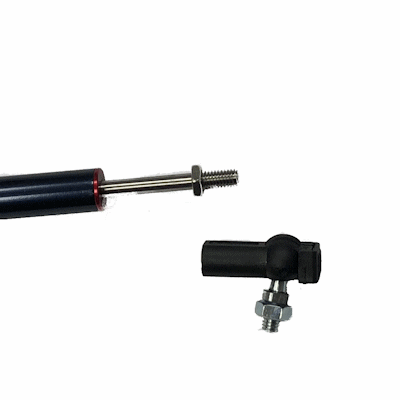

  • Pop Joint Mounting
  • IP67 Sealed
  • 75 and 150mm Range
  • +/- 0.5 Linearity
  • Long Life
  • Mechanical Life up to 25 Million Cycles
  • Maximun Speed 10m/s
  • Repeatibility 0.01mm
  • Reistance 5Kohm ( 75mm) – 10Kohm  ( 150mm )
  • Dumper position ready
  • Standard or Junior GP M2 dedicated version
  • The Alluminium Spacers kit for the maximum length adjustment is included into Junior GP M2 version

Additional information

Weight 0,12 kg
Range

150 mm – STD, 75 mm – STD, 150 mm – JuniorGP M2, 75 mm – JuniorGP M2

DATASHEET

Here the STD version datasheet :SEN_LSxx-9_Datasheet-v3.0.0

Here the MOTO2 version datasheet :

SEN_LSxx-MT2_Datasheet-v1.0.0

Here the draw about the spacers supplied with the MOTO2 version :

SPACER_M4_FOR_LSxx_V1.0
